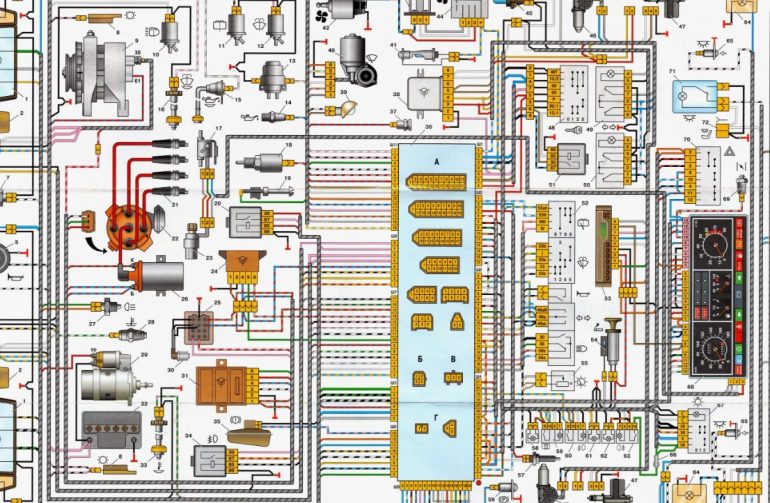

Как читать электрику автомобиля
Understanding Automotive Electrical Schematics
1. Locate the Schematics:
Check the vehicle’s manual or online resources for the electrical schematics.
Typically, schematics are organized by system (e.g., lighting, ignition, charging).
2. Identify Symbols:
Familiarize yourself with common electrical symbols, such as:
Wires: Solid or dotted lines
Resistors: Zigzag lines
Capacitors: Parallel lines with a gap
Diodes: Half-arrow symbol
Fuses: Rectangle with a cross inside
Switches: Lines with arrowheads
Relays: Circle with multiple terminals
3. Understand Wiring Conventions:
Wires are typically color-coded according to their function.
Colors may vary by manufacturer, but common colors include:
Ground: Black
Battery Positive: Red
Ignition Power: Yellow
Headlights: White
Turn Signals: Green/Amber
4. Trace Circuits:
Follow the lines from the power source (e.g., battery) through each component to the ground.
Identify the switches, relays, and resistors that control the flow of electricity.
5. Identify System Components:
Schematics typically label components with their names or abbreviations.
Look for devices such as:
Alternator
Starter
Battery
Fuses and relays
Lights
Switches
6. Use a Multimeter:
A multimeter can measure voltage, current, and resistance.
Use it to verify circuit continuity, test components, and troubleshoot electrical issues.
7. Safety Precautions:
Always disconnect the battery before working on electrical systems.
Wear gloves and eye protection.
Use insulated tools to prevent shocks.
If you are unsure about anything, seek professional help.
Tips for Reading Electrical Schematics:
Start with a simple system (e.g., lighting) and gradually move to more complex ones.
Use a highlighter or tracing paper to mark wires and components.
Reference manuals or online forums for additional clarification.
Practice regularly to improve your understanding.
